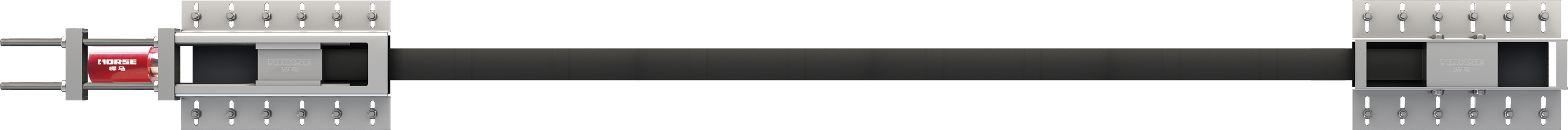

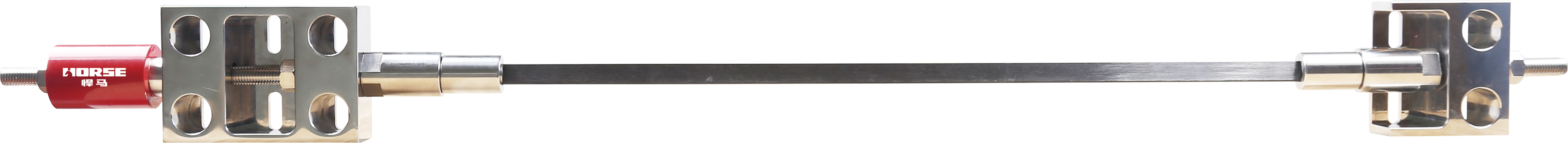

Horse Construction independently developed a pre-stressed carbon plate system that can be stretched in both directions to reduce construction costs. The coaxial non-eccentric tensile design is designed to cause small damage to the carbon plate and high safety factor.

• Prestressed carbon plate system capable of bidirectional tension

Does not distinguish between the tension end and the fixed end, reducing the cost of construction technology

The structure of the tension end and the fixed end are exactly the same, and they can be installed at will during construction. A jack can be installed at either end for tensioning, and the construction is not easy to make mistakes. Let everyone and workers can easily install.

• Lossless coaxial, tensioned design

The eccentricity of the tension screw and the carbon plate is only 5mm, which is compared with other manufacturers in the market. The eccentricity of the anchor is reduced by 10-20mm, which does not cause compression and shear damage to the carbon plate.

• Mould steel is used as anchor, the strength is as high as 850MPa

The raw material has undergone two heat treatments and the temperature is as high as 850 degrees. Compared with ordinary prestressed carbon plate anchors, the strength is increased by more than 30%

• Active reinforcement to give full play to the performance of fiber materials. The improvement of structural strength. Crack control and deflection control have positive effects

Prestressed carbon fiber plate to strengthen the bridge is to increase the external prestress on the original beam. Change the original reinforced concrete beam into a partially prestressed concrete beam. The original prestressed concrete beam improves its bearing performance and reduces the dead load stress. Reinforcement purpose to improve live load stress After reinforcement, the structure ensures that the original cracks can be actively repaired. A very efficient way to strengthen bridges
