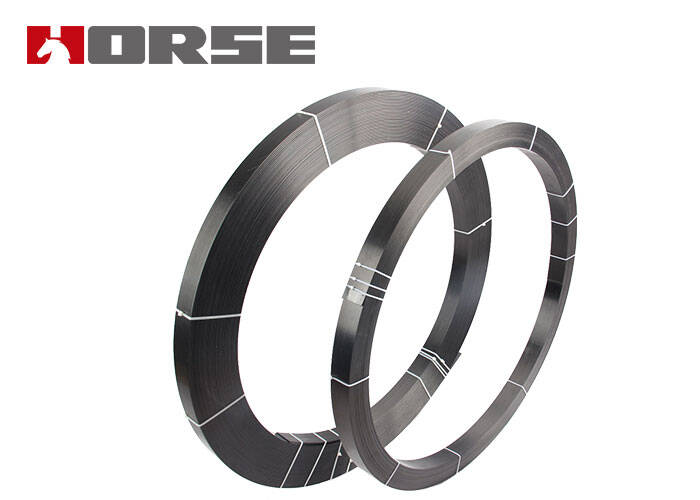

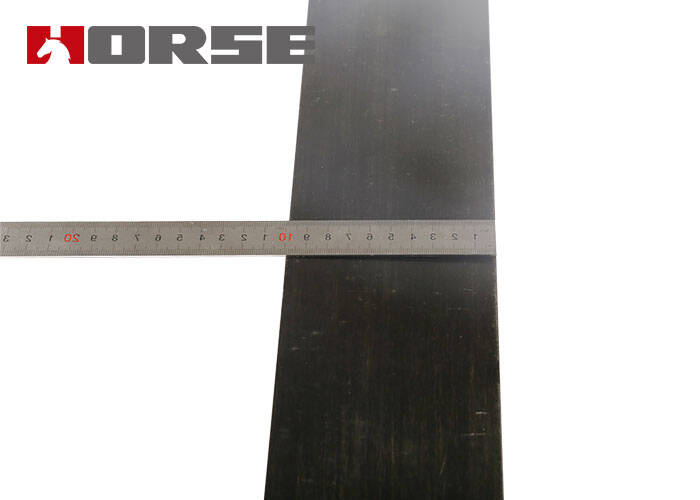

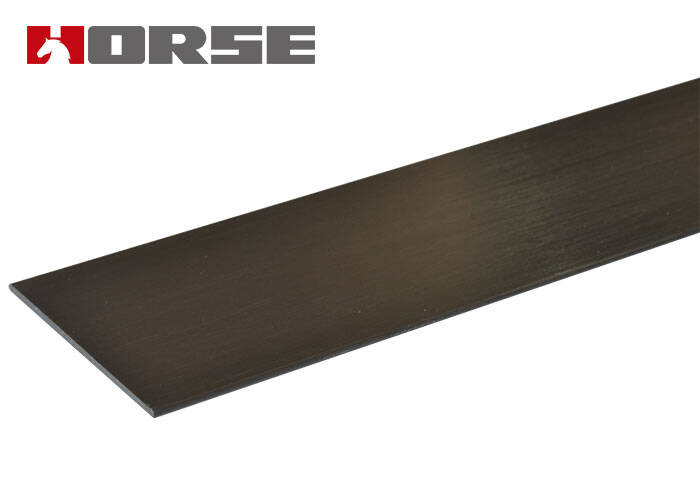

HM-1.2T and HM-1.4T are prefabricated (pultruded) carbon fiber reinforced sheets, used for structural reinforcement of concrete, masonry, metal or wood structures. Glue on the load-bearing components, they are reinforced with epoxy glue (M-120CP).

Horse CFRP Plate's Date Sheet

HM-1.2T Technical Data Sheet.pdf

HM-1.4T Technical Data Sheet.pdf

Characteristics of HM-1.2T and HM-1.4T carbon fiber plate

• Very high tensile strength

• No corrosion

• Low dead weight and low installation thickness

• Deliverable measurements (no need to overlap or connect)

• Easy to apply, also suitable for ceiling work

• Excellent fatigue performance

• Simple, flexible and economical reinforcement technology

• May cross with simple flakes

• Very short structure using interrupt

• No noise or vibration during installation

Application of HM-1.2T and HM-1.4T carbon fiber strip

Increase in carrying capacity

-Increased payload on beams and bridge decks

-Changes in the use of buildings

-Installation of heavy machinery or equipment in industry

-Stability to vibration and oscillation

The following structural system changes

-Remove supports or walls

-Create an opening (funnel) in the board

-Increased shock resistance

-Design or construction defects

Repair defects in structural elements

-Corrosion and cross-section reduction of steel bars in concrete

-Aging of building materials

-Damage to the structure after fire, earthquake, impact, etc.

Improve conditions of use

-Reduce crack opening

-Reduce deformation

-Reduce stress in steel

-Reduce fatigue effect
