Carbon fiber is a new advanced materials for structural strengthening reinforcement. Therefore, many owners, applicators, suppliers and contractors still don't know how to use carbon fiber cloth for structural strengthening reinforcement. Today, HORSE will use video + pictures + text to explain it for everyone.

3D application video

The cosmetic layer, oil, dirt etc. Of concrete surface should be chiseled off

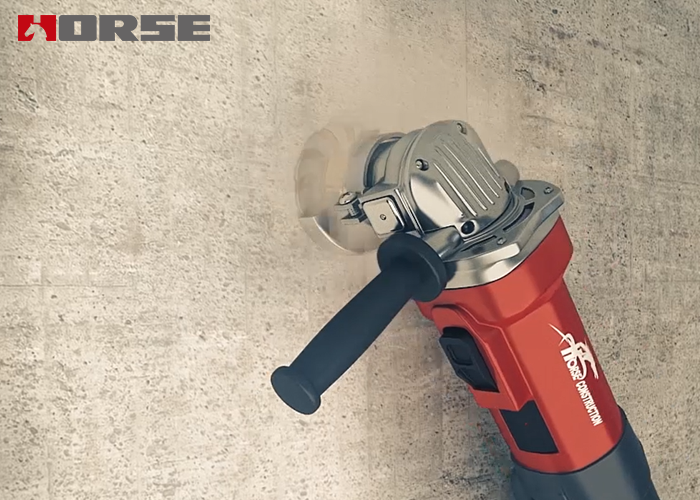

then rubbed off 1 ~2 mm thick surface layer with the angle grinder

concrete components should be handled by chamfering on the corner

dust was blew out with compressed air after the completion Of polishing, and finally the surface was wiped by cotton cloth dipped in acetone, and kept dry for use

setting out

apply primer

level construction

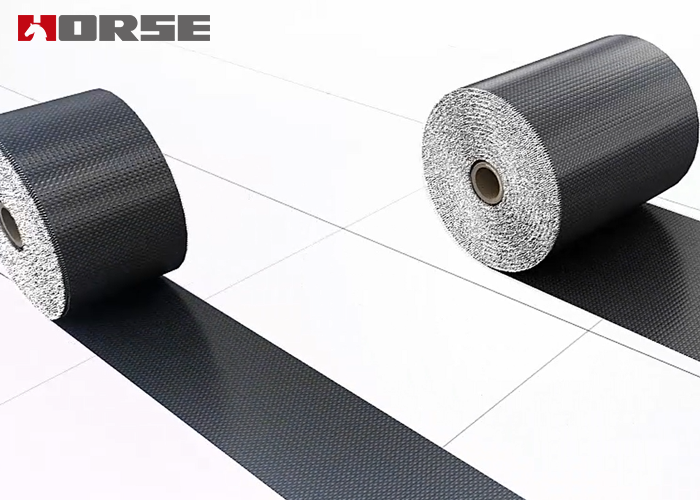

Horse carbon fiber fabric

cut carbon fiber fabric

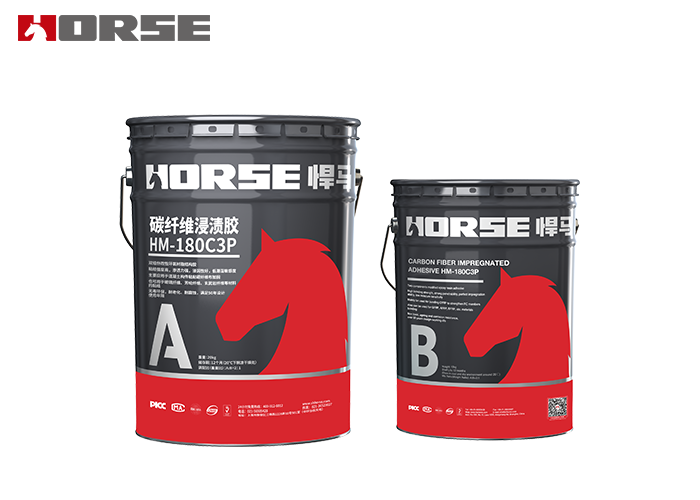

weight carbon fiber adheive and mix

apply carbon fiber adheive on the substrate

install carbon fiber

When depression area was existed, the prepared leveling adhesive was used to repair and fill through scraper embedding and scraping, the position emerging altitude difference such as the joint of templates should be filled by leveling adhesive, which tried to minimize the height difference

And then smear impregnated adhesive to the outside surface of the carbon fiber sheet evenly, and roll repeatedly that the impregnated adhesive can immerse the carbon fiber sheet in two ways, if it is multi-paste, until your fingers touch dry, the next layer of paste can be beginner. If the carbon fiber sheet needs overlapping.

apply carbon fiber

Curing and conservation
