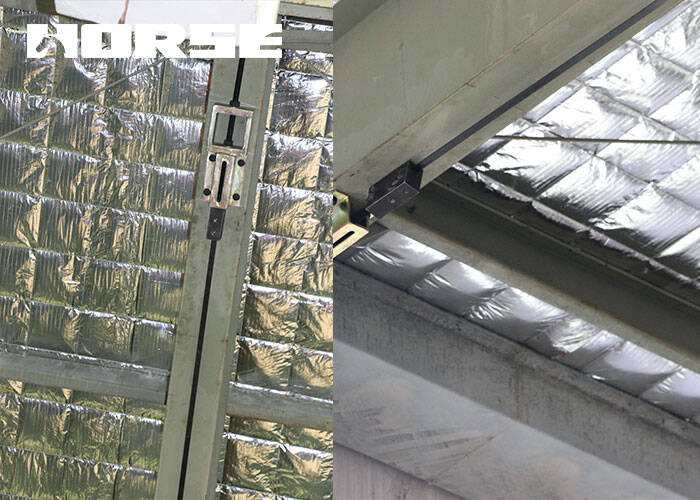

Yes, it is possible to reinforce steel structures with carbon fiber. It involves applying carbon fiber sheets or strips to the surface of steel elements to enhance their strength, stiffness, and load-carrying capacity.

The process of reinforcing steel with carbon fiber is similar to carbon fiber strengthening of concrete, but with some variations:

Surface preparation: The steel surface is thoroughly cleaned and prepared by removing any rust, scale, or contaminants that could hinder the bonding between the carbon fiber and the steel.

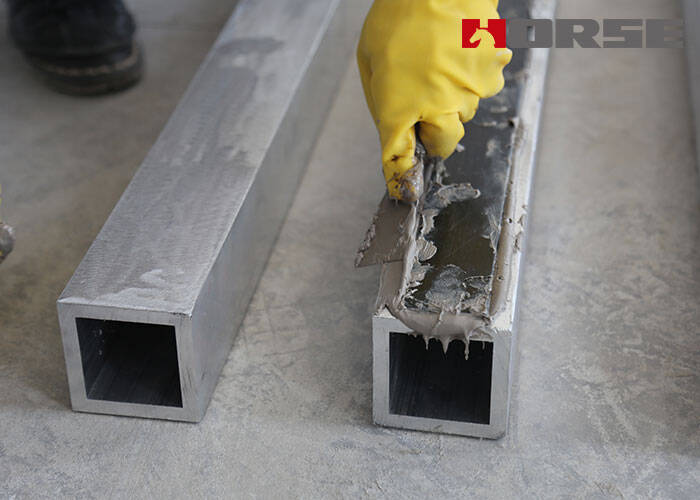

Adhesive application: A high-strength epoxy adhesive or bonding agent is applied to the prepared steel surface. This adhesive serves as the bonding medium between the carbon fiber and the steel substrate.

Carbon fiber application: Carbon fiber sheets or strips are positioned onto the adhesive-coated surface of the steel. The carbon fiber is typically oriented in the direction that requires reinforcement, such as along the length or width of a beam or column.

Consolidation: Pressure is applied to ensure proper contact and adhesion between the carbon fiber and the steel surface. This consolidation step helps to create a strong bond between the two materials.

Curing: The epoxy adhesive is allowed to cure and harden, forming a durable bond between the carbon fiber and the steel substrate.

The carbon fiber reinforcement provides several advantages to the steel structure, including:

Increased strength: Carbon fiber has excellent tensile strength, which helps to improve the load-carrying capacity of the steel element and enhance its structural integrity.

Enhanced stiffness: The addition of carbon fiber increases the stiffness of the steel structure, reducing deflection and improving its overall rigidity.

Fatigue resistance: Carbon fiber reinforcement can help improve the fatigue resistance of steel structures, reducing the potential for crack initiation and propagation.

Corrosion resistance: Carbon fiber does not corrode, unlike steel, which is susceptible to rust. By reinforcing steel with carbon fiber, the carbon fiber acts as a protective barrier, reducing the exposure of the steel to corrosive elements.

Reinforcing steel with carbon fiber is commonly employed in situations where additional strength is required, or when steel structures have experienced damage, deterioration, or are at risk of failure. It can be applied to various steel elements, including beams, columns, bridges, and other structural members. It offers a lightweight and efficient alternative to traditional methods of steel reinforcement, such as steel plates or additional steel members.
