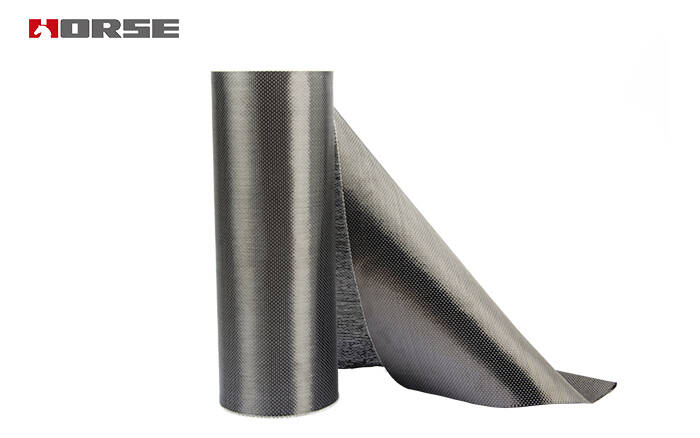

What is unidirectional carbon fiber fabric?

The unidirectional carbon fiber fabric is in one direction (usually meridian) with a large amount of carbon fiber, with only a small amount of carbon fiber in the other direction and usually thin carbon fibers in the other direction, so that all the strength of the cloth is in the same direction.

Unidirectional carbon fiber fabric is a nonwoven carbon reinforcement material, characterized by all fibers running in a single parallel direction. Using this type of fabric, there is no gap between the fibers, and these fibers are flat. Without cross section weaving, the fiber strength is divided into two directions in another direction. This allows the density of fibers to provide maximum longitudinal tensile potential greater than any other fabric weave.

Advantages of unidirectional carbon fiber fabrics

•  flexible

•  high strength

•  high modulus

•  easy to install

•  long shelf life

•  light self weight

•  high toughness

•  anti high temperature

•  environmental-friendly

•  for shear strengthening, confinement strengthening, flexural strengthening

Disadvantages of unidirectional carbon fiber fabrics

Unidirectional carbon fiber cloth is more suitable for civil engineering, and other fields can not give full play to the strength of carbon fiber. So other fields may more choose bidirectional carbon fiber fabric.

Use of unifirectional carbon fiber fabric

1) reinforcement of building reinforcement

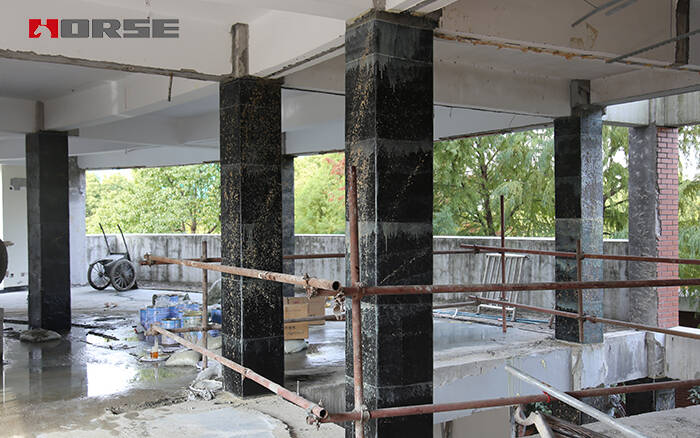

2) reinforcement of beam and column

3) aseismatic reinforcement

4) maintenance and reinforcement of viaducts and bridges

5) the reinforcement of the shear wall by opening the door

6) reinforcement of the root fracture of the balcony

At present, 6 kinds of unidirectional carbon fiber fabrics are provided. The following is a summary of each fabric, so you can find fabrics that meet your unique needs.
