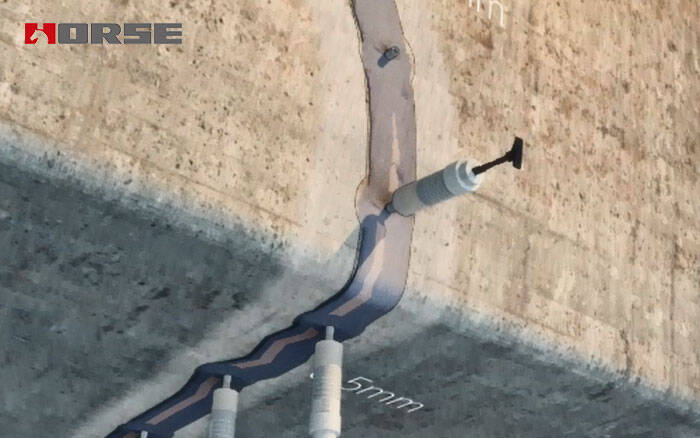

Low pressure crack injection for structural crack reapir

This method is suitable for repairing concrete cracks with crack width of 0.2-0.3 mm. It is to inject adhesive into cracks to improve their waterproofness and durability. For incomplete cracks, grouting method is difficult to inject slurry into the interior. When the injection pressure is too high, it is possible to expand the crack width. Therefore, at present, low pressure and low speed injection methods are widely used.

The construction process of HM 120L crack injection adhesive

Crack surface repair

First, chip away plastering of the range on each side of crack by 10cm.

Slot cracks

Sloppy along crack according to design, then polishing and cleaning it up.

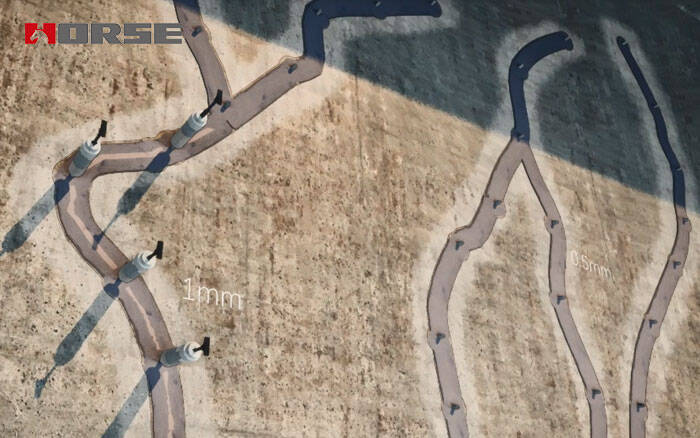

Sealing ports, sealing cracks

Sealing creaks and ports with structural repairing adhesive, keep ports distance 10 to 30 cm.

Air pressurre test

When the structural repairing adhesive has cured, precedes the air pressure testing if there is leakage, see less or reinstall ports.

Mix adhesive

Mix the horse construction crack injection adhesive according to the ratio. Stir evenly and avoid any bubble.

Inject adhesive

Inhaled the adhesive with adhesive injector and inject adhesive via ports one by one. Start the second injector when adhesive overflow from one side to the other side. When crack injection adhesive has initial cured, remove injectors and ports.

Inspect quality

Level the surface with structural repairing adhesive, take the quality inspection after 7 days.
