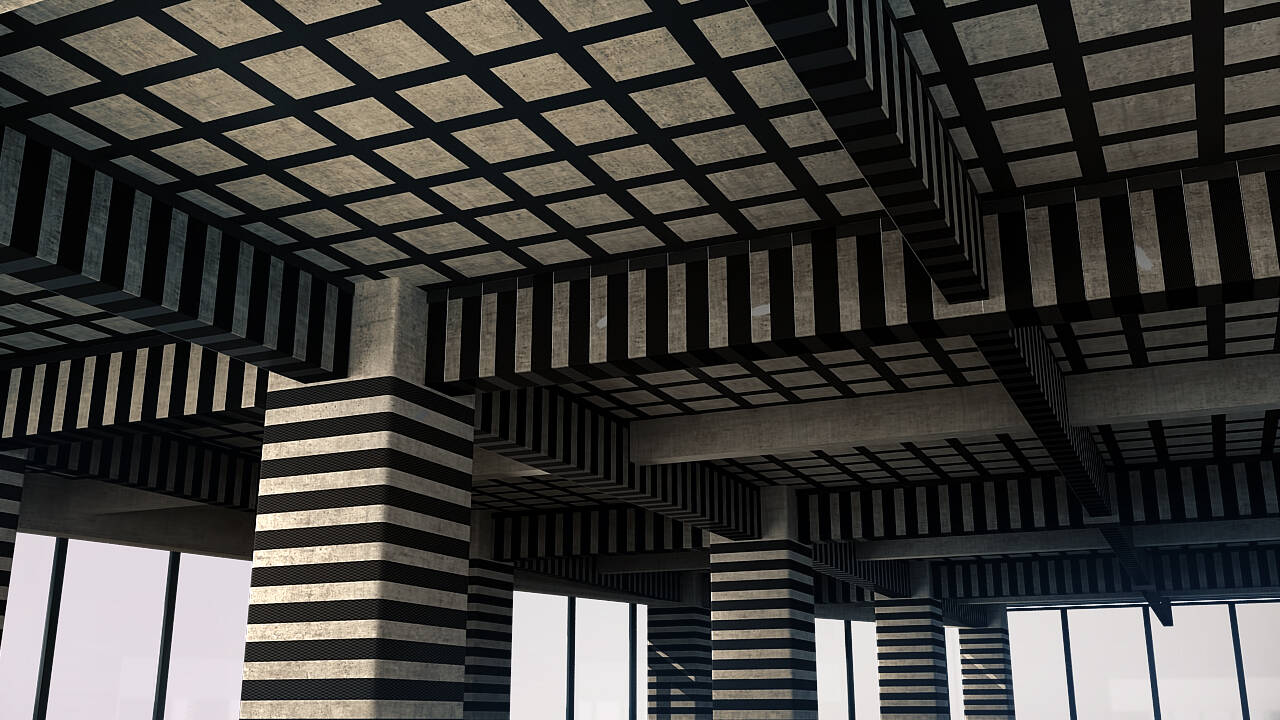

Carbon fiber reinforcement method is used for tensile, shear and seismic reinforcement of structural members. It is a relatively simple reinforcement method compared with other reinforcement methods (such as: increasing cross-sectional area, encased steel, external prestressing method, etc.). More and more people are using carbon fiber to concrete reinforce.

The basic sequence of carbon fiber reinforcement

1. Unloading

Before reinforcement, the reinforced components should be unloaded as much as possible to ensure that they are in the most original state and completely reinforced.

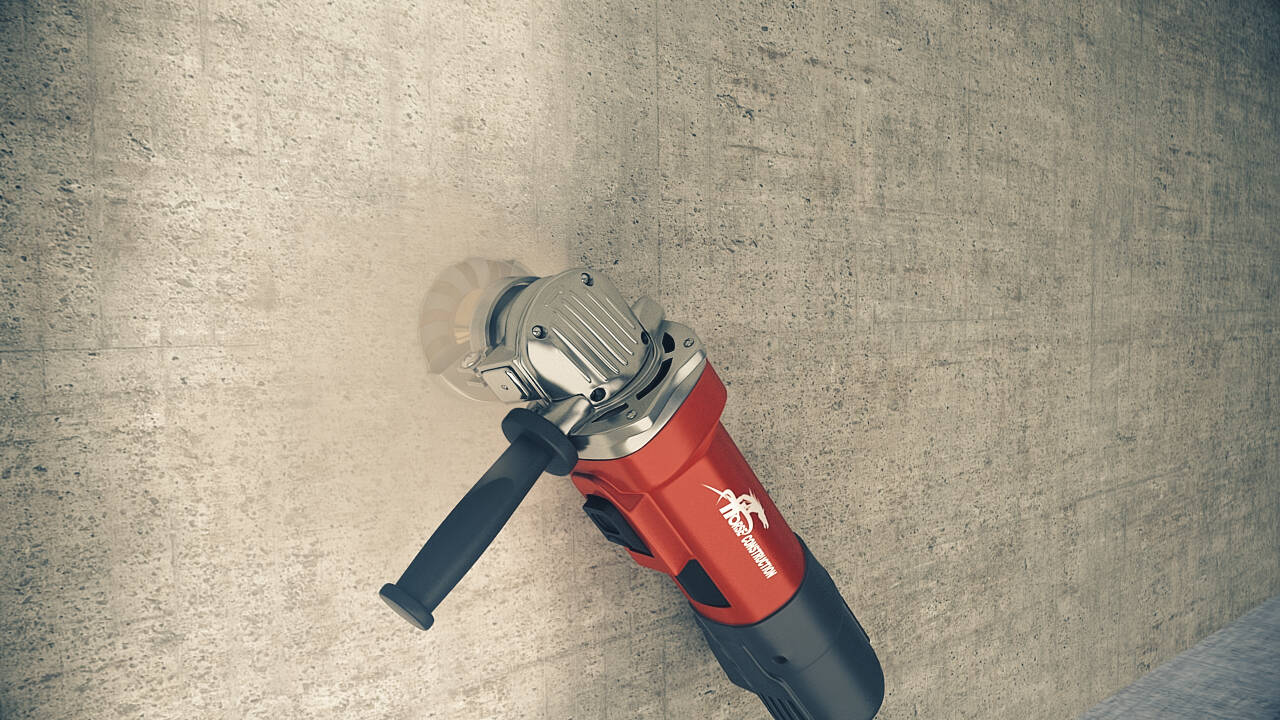

2. the treatment of base materials

3. Position and pay off according to the drawing

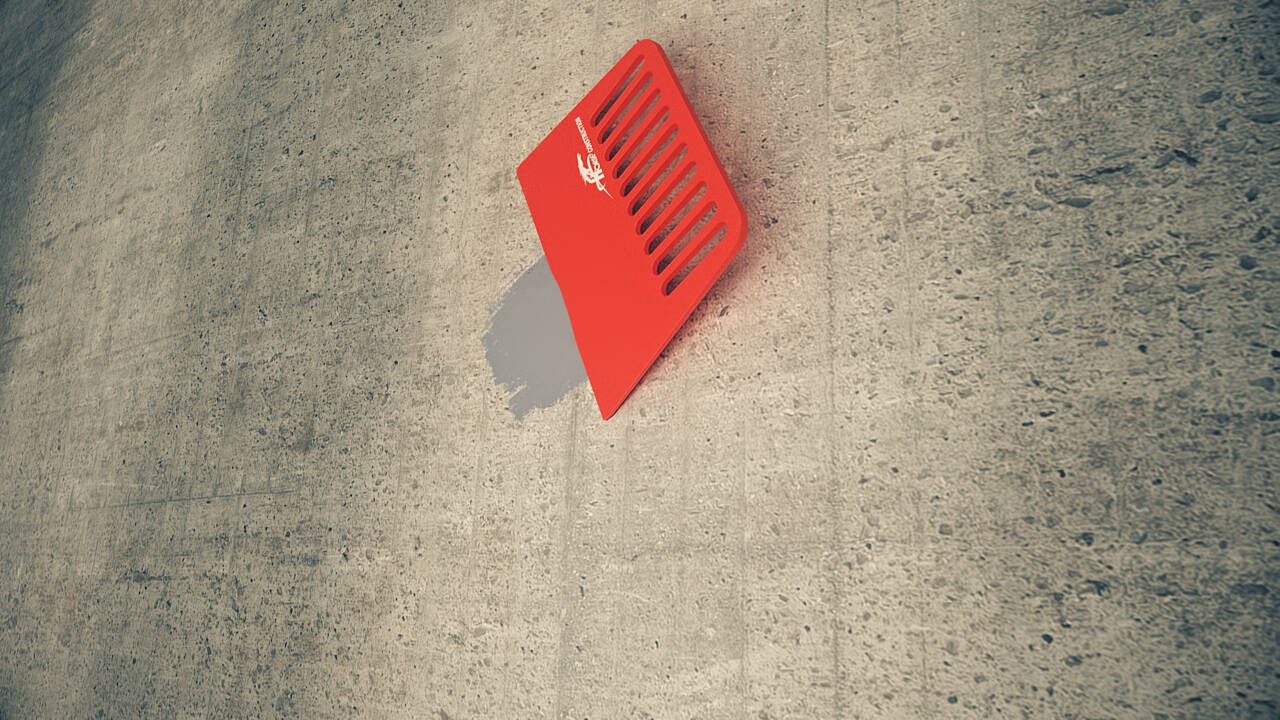

4. Repair various defects of leveling concrete components

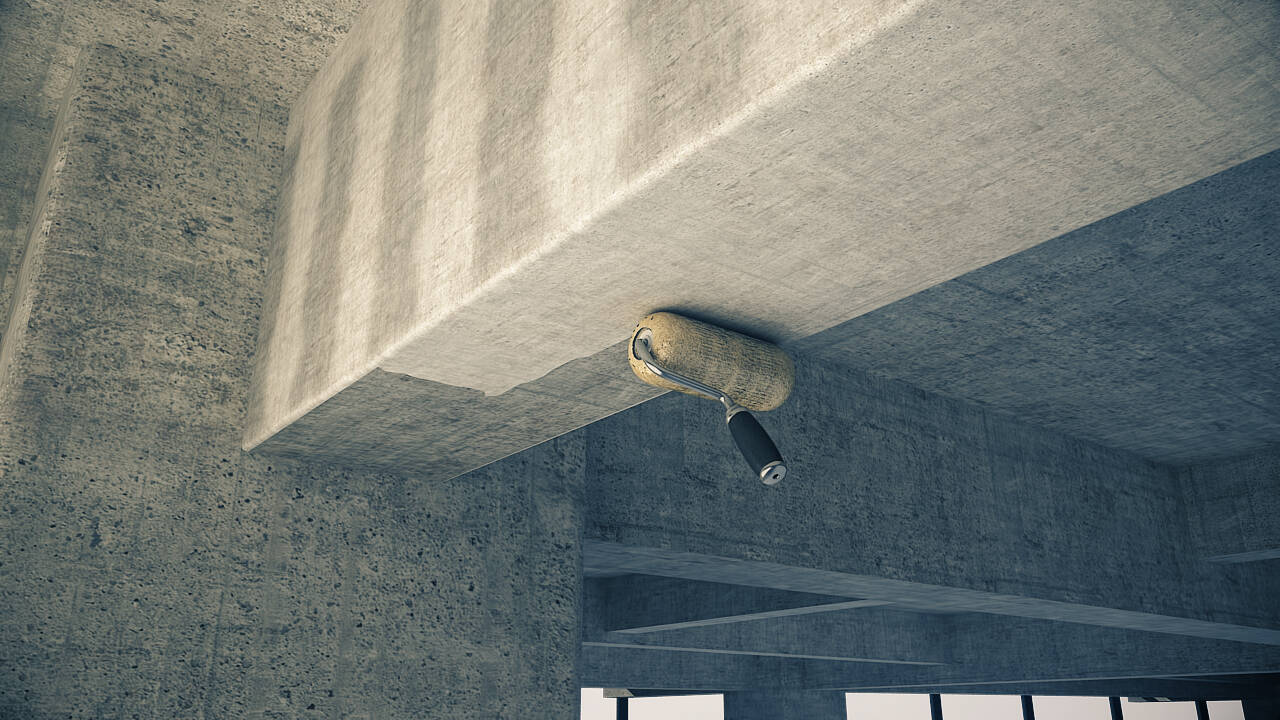

5. Brushing carbon fiber primer

6, according to the design drawings cut carbon fiber fabric

7. Weighing and preparing carbon fiber glue according to the specified proportion

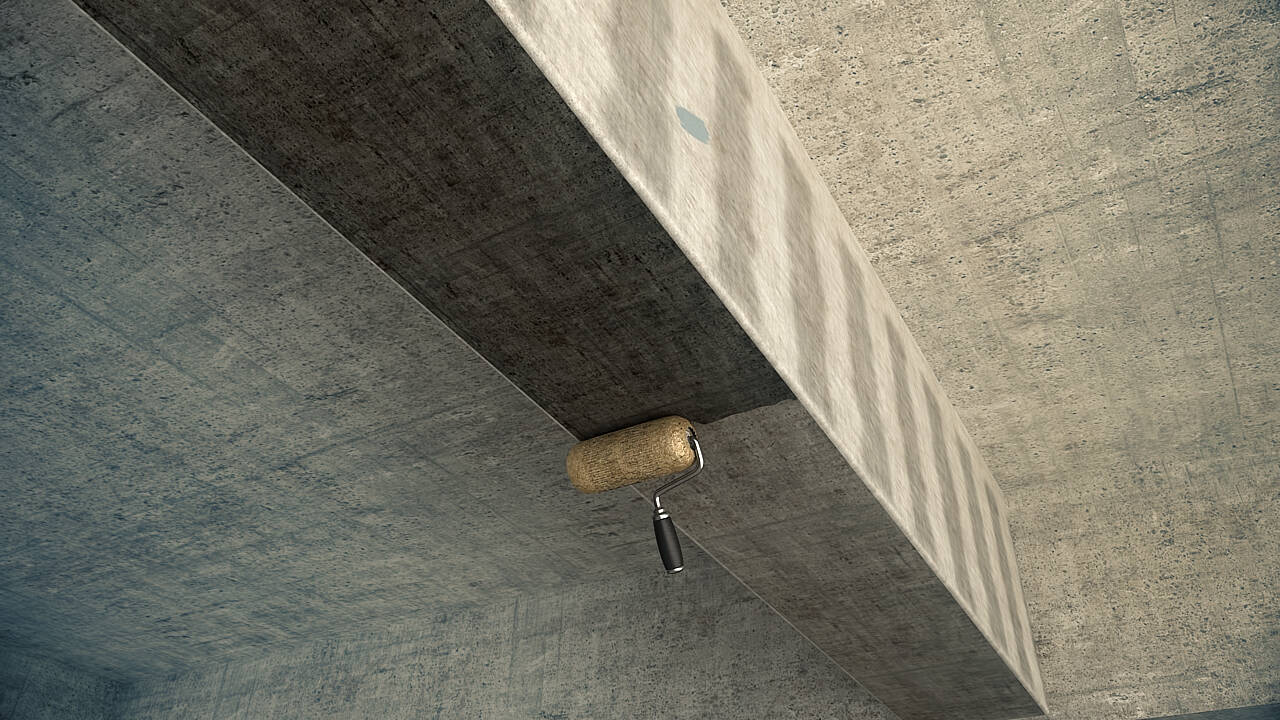

8. Evenly apply carbon fiber adhesive

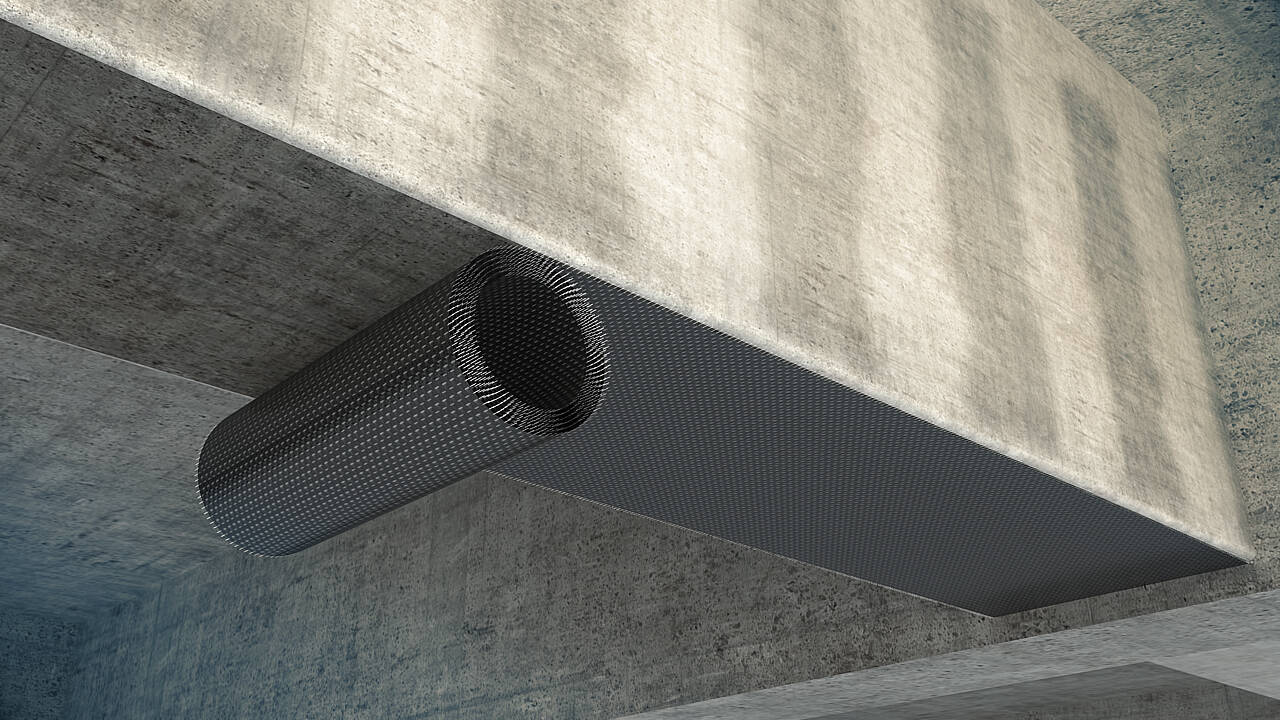

9. paste the carbon fiber cloth and use the scraper to smooth the surface of the fiber cloth along the fiber direction

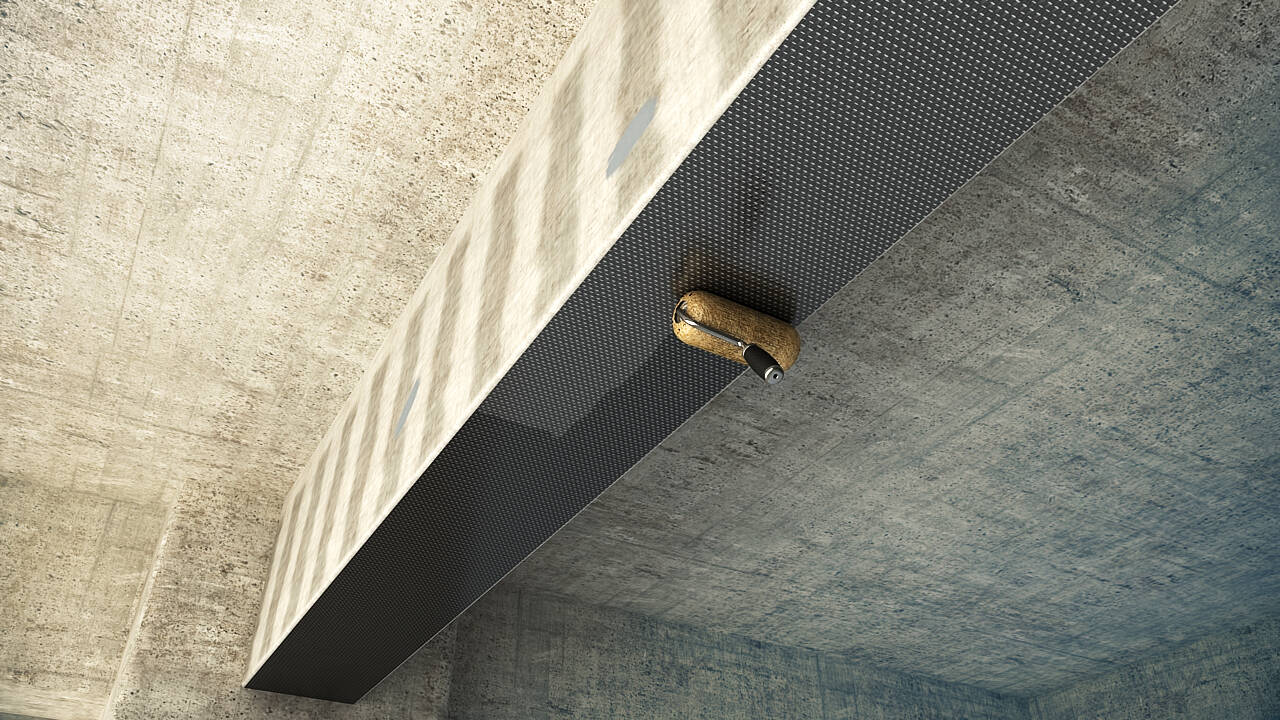

10. Roll the carbon fiber glue again to ensure that the glue is fully immersed in the fiber cloth, evenly compacted without bubbles

11. Repeat the above steps for multi-layer paste

Reference dosage of Horse carbon fiber adhesive

HM-180C3P modified epoxy carbon fiber adhesive: 0.6 ~ 0.8kg / m2
