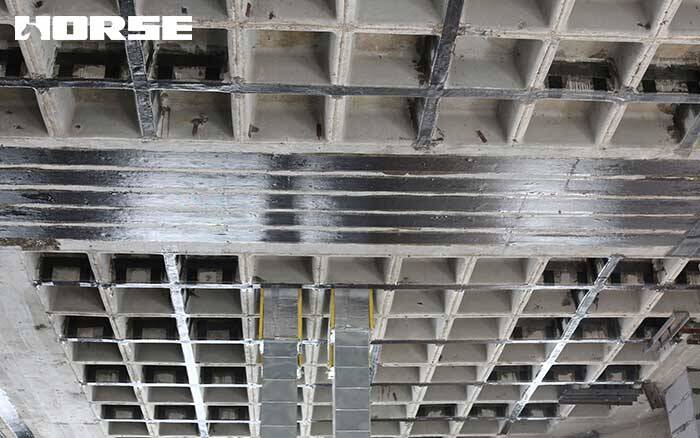

1. Calculation of the area of pasted carbon fabric:

After the width of carbon cloth and the number of layers are determined, the calculated area + U-hoop area + bead area (considering the beam height);

Note: The area of the bead is sometimes not marked as one layer and cannot be ignored.

2. Calculation of steel pouring area:

L-shaped steel area + dropout area (dropouts generally have encryption problems at the top of the bottom of the structural column);

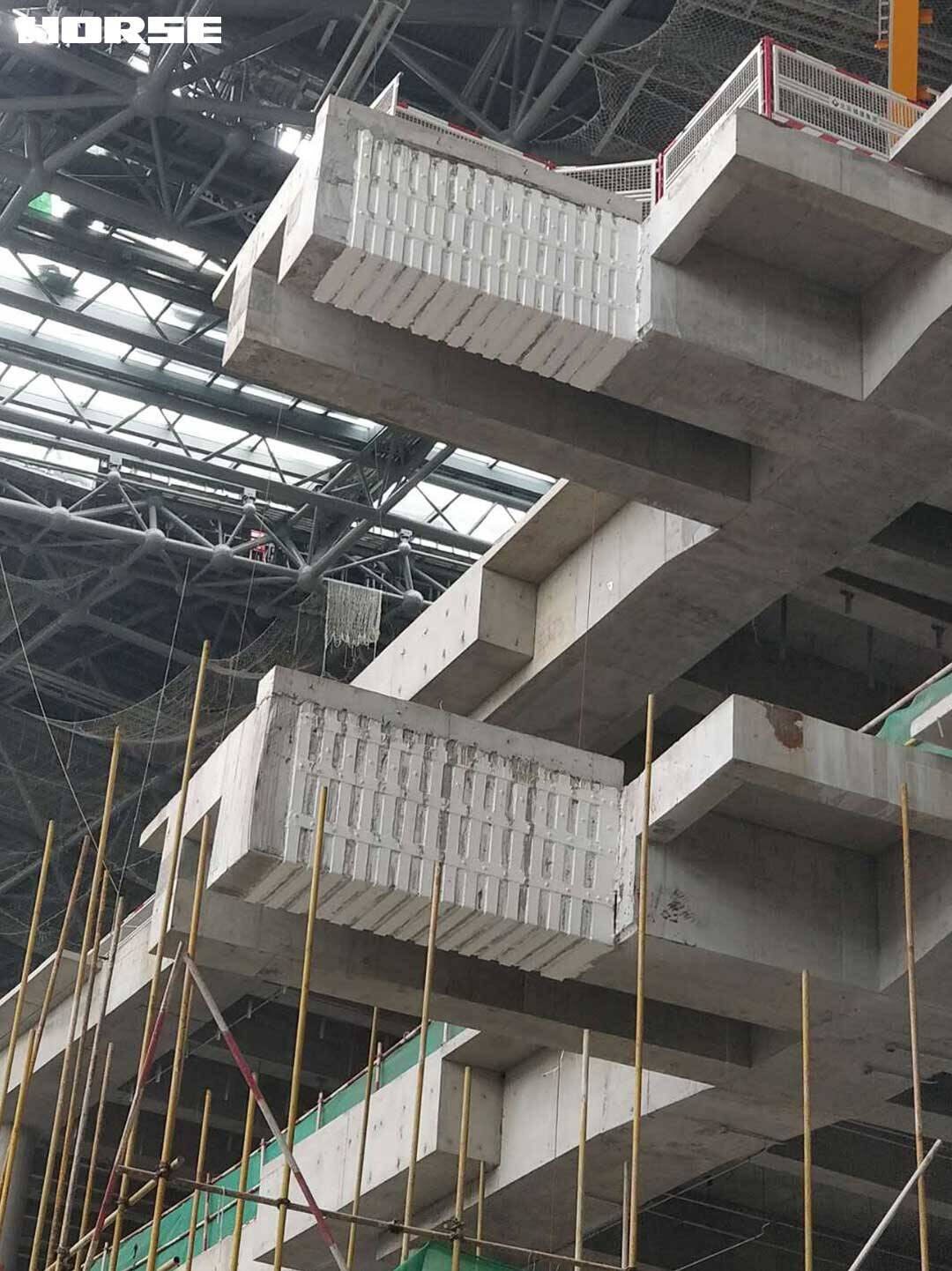

3. Calculation of sticky steel area:

Steel plate area + U-shaped hoop area + bead area;
