Unidirectional carbon fiber sheet is a new material in the field of structural strengthening. It has been widely used in reinforcement and repair projects to increase the load of buildings since its appearance.

However, there are many unidirectional carbon fiber sheets on the market, and the price gap is also surprisingly large (ranging from tens to hundreds). In terms of quality, how big is the difference between these low-cost unidirectional carbon fiber sheets and high-priced unidirectional carbon fiber sheets?

First of all, the unidirectional carbon fiber sheet currently on the market has four specifications: first grade 300g, first grade 200g, second grade 300g and second grade 200g. The first-grade unidirectional carbon fiber sheet has a tensile strength ≥3400MPa, an elastic modulus of 230GPa, and an elongation of 1.6%. The tensile strength of secondary unidirectional carbon fiber sheet is ≥3000MPa, the elastic modulus is 200GPa, and the elongation is 1.5%. In addition, 300g represents a unidirectional carbon fiber sheet with a thickness of 0.167mm. 200g represents a unidirectional carbon fiber sheet with a thickness of 0.111mm. The performance of first-class unidirectional carbon fiber sheet is more excellent, and the price is naturally higher.

Thirdly, unidirectional carbon fiber sheet is used with carbon fiber impregnated rubber to become carbon fiber composite material. Therefore, after talking about the price difference caused by the specification grade of unidirectional carbon fiber sheet, we must also talk about the price difference caused by the carbon fiber adhesive. Carbon fiber adhesives must pass the safety appraisal, generally have the certification of 30 years and 50 years of durability. The 30-year endurance only needs to pass the humidity and heat aging test. In addition to the 50-year endurance unidirectional carbon fiber sheet, it needs to pass the humidity and heat aging test, and it must also pass the long-term stress test and non-toxic test. Therefore, the difference in quality and performance of the adhesive for the unidirectional carbon fiber sheet with a durability of 30 years and a durability of 50 years can be seen.

In order to reduce costs, some manufacturers use raw materials that are inferior carbon fiber filaments or simply false filaments when weaving unidirectional carbon fiber sheet. Some use "stealing silk" (reducing the use of carbon fiber tow) to reduce costs. Others use large tows instead of small tows to reduce costs. The above situation is not serious, you can’t see anything, you need to detect it, but the serious bad one-way carbon fiber sheet has a bad feel, the sheet surface is not too smooth and flat, and the cutting is easy to scatter.

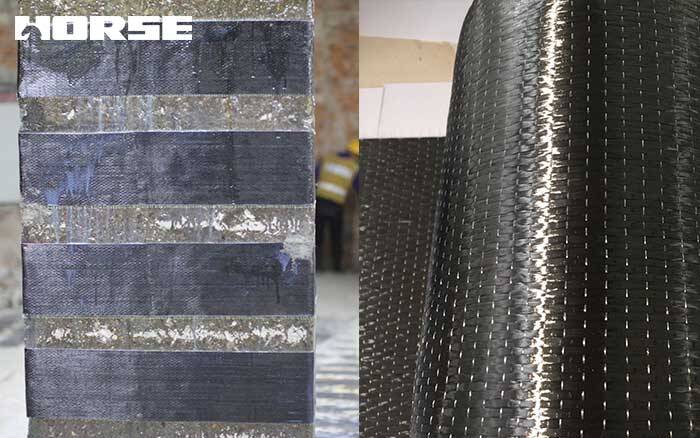

Horse unidirectional carbon fiber sheet adopts Toray Japan, the sheet surface is smooth, the tow is smooth, and the cutting will not be scattered. And its tensile strength is as high as 4424 MPa (higher than the strength of the general unidirectional carbon fiber sheet on the market). The adhesive matched with the unidirectional carbon fiber sheet has been certified for 50 years of resistance to moisture and heat aging. Horse unidirectional carbon fiber sheet is reasonable in price and comprehensive in service, and is the first choice for building reinforcement projects.
