Project overview

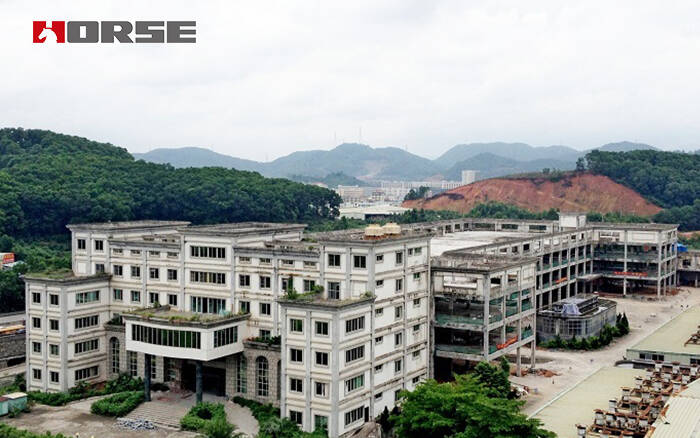

Dongguan Houjie building reinforcement project for the reinforced concrete frame structure five on the ground floor, the building covers an area of 1680 square meters, total construction area of 8453 square meters, the height is of 19.5m.

The building should be reinforced and retrofitting into industrial factory building of the first and thecond level, and third to five floors for the office building.A large amount of reinforcement and repair construction of the foundation, column, beam, plate and other components which are not satisfied with the requirements of standard and safe are carried out.

Main strengthening methods

Anchor static pressure pile, stick steel plate, enlarging section and crack injection repair

Structural Strengthening matrials

HM-120 steel plate bonding adhesive

HM-500 anchoring adhesive

HM-120L crack injection adhesive

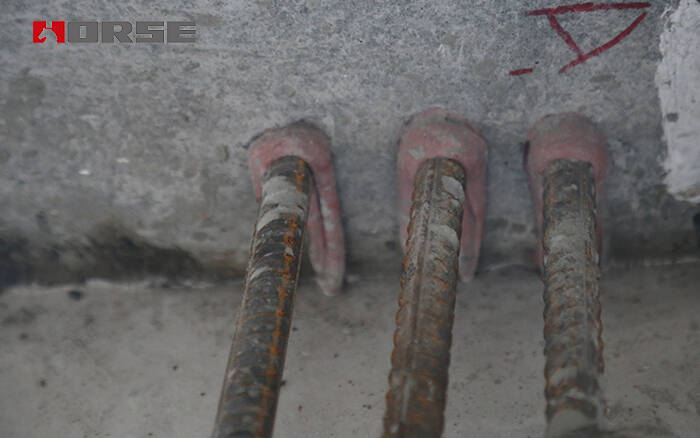

(strengthening with anchoring adhesive)

(enlarging section)
