Fiber Reinforced Polymer(FRP) Fabrics structural strengthening system?

Fiber reinforced polymer (FRP) fabric system, including unidirectional carbon fiber and glass fiber fabric and impregnated resin. The fiber reinforced polymer (FRP) fabric system makes it a versatile composite material that can be used for many structural strengthening applications. Including restraint, shear and seismic upgrades and structural reinforcement of weak concrete, masonry, natural stone and timber structures.

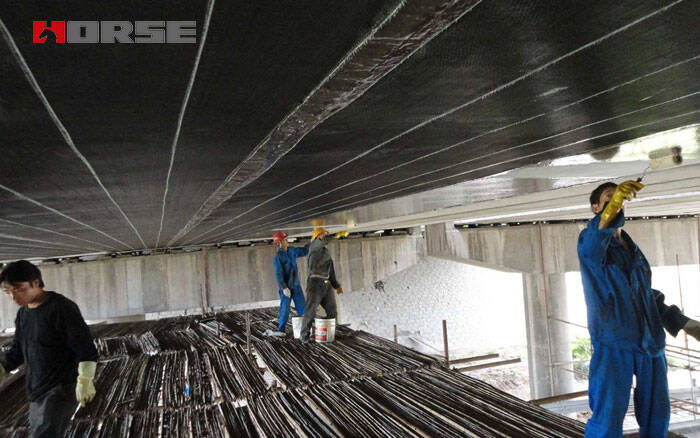

Fiber Reinforced Polymer(FRP) Fabrics structural strengthening system installation

Carbon Fiber Fabric - Horse Construction.pdf

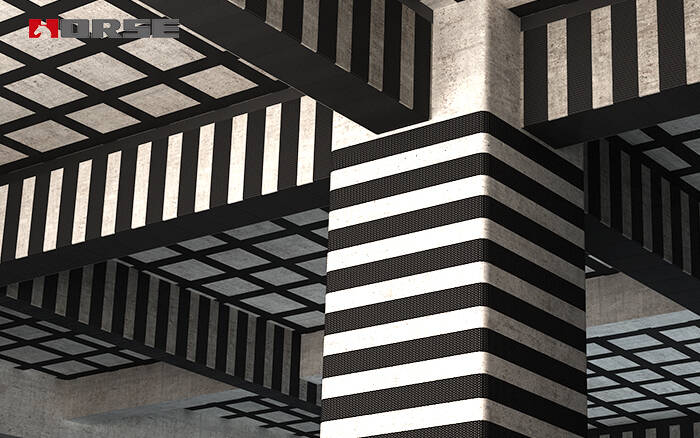

Fiber Reinforced Polymer(FRP) Fabrics structural strengthening system applications

1 Confinement

For structural members in compression
To enhance load-carrying capacity or ductility
Multi-layer applications are possible

2 Shear Strengthening

Non-rectangular cross sections are possible
End anchorage with FRP fabric

3 Seismic Strengthening

Mostly using glass fiber fabrics
For passive strengthening solutions
Used as an alternative to textile reinforced mortars

4 Weak Substrate Strengthening

For strengthening masonry, natural stone walls and other structures
Flexural strengthening of weak concrete elements or structures

Fiber Reinforced Polymer(FRP) Fabrics structural strengthening system

Horse's structural reinforcement system based on FRP system has many advantages

Durability tests have been conducted under many harsh conditions to ensure long-term performance and durability in different applications and environments.
The strength is relatively high, the modulus is high, and it can be flexibly used for bending, sealing and shear reinforcement.
It has strong flexibility and can be used to reinforce irregularly shaped structures and substrates.
The installation is extremely flexible and easy, the construction period is short, and labor is saved.
Our products have more than 15 years of experience in projects in all regions and have been successfully applied to 70,000 projects.

Horse Carbon Fiber Reinforced Polymer(CFRP) Fabrics structural strengthening system

HM-60 Carbon Fiber Fabric TDS.pdf

HM-20 Carbon Fiber Fabric TDS.pdf

HM-30 Carbon Fiber Fabric TDS.pdf

Dry Fiber Typical Properties
Standrad Value of Tensile Strength	4900MPa
Tensile Elastic Modulus	234500MPa
Elongation	1.7%

Laminate Fiber Typical Properties
Standrad Value of Tensile Strength	3800MPa
Tensile Elastic Modulus	234500MPa
Elongation	1.7%
With Concrete	Concrete Damaged: ≥2.5MPa
Densiy	1.8g/cc(0.065lbs.in³）
Norminal Fiber Thickness	HM-20 unidirectional carbon fiber sheet	0.111mm(0.0044in.)	200gsm
	HM-23 unidirectional carbon fiber sheet	0.128mm(0.0050in.)	230gsm
	HM-30 unidirectional carbon fiber sheet	0.167mm(0.0065in.)	300gsm
	HM-45 unidirectional carbon fiber sheet	0.251mm(0.0097in.)	450gsm
	HM-53 unidirectional carbon fiber sheet	0.295mm(0.0114in.)	530gsm
	HM-60 unidirectional carbon fiber sheet	0.333mm(0.0130in.)	600gsm

Product Name	Product Description
HM-180	Horse carbon fiber primer is low viscosity, strong penetration ability adhesive, used for smearing of the underlayer of reinforced members' surface, the role is penetration bonding reinforcement to the broken concrete after chiseling off; of the surface of members was intact, smearing was not needed.
HM-180CE	Horse levelling adhesive is good thixotropy adhesive, used for repair and leveling of reinforced component surface defects, the role is leveling of concrete surface defect, major damage, convexo-concave surface, and the corner, in order to paste carbon fiber, better to give play to the tensile strength of carbon fiber fabric.
HM-180C3P	Low viscosity, good impregnation, with certain thixotrpic property, used for impregnation and paste of reinforced component surface and fiber products, Horse carbon fiber adhesive's role is to be completely soaked in fiber products, and paste fiber products effectively on the component surface, thereby to strengthen and reinforce the components.
