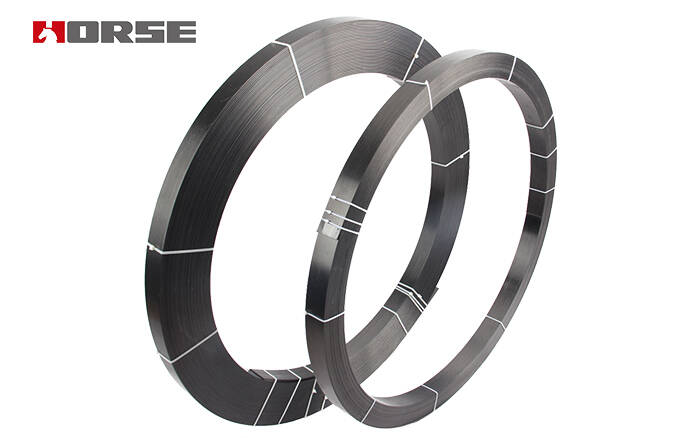

Horse Construction HM Carbon Fiber Laminate

Horse Construction is the largest and most professional manufacturer and supplier of carbon fiber laminate in China.

Horse Construction has two carbon fiber laminate production lines, used on German Dornier looms which is the world's best weaving machine. Daily output of 2,000 meters of carbon fiber laminate and an annual output of 600,000 meters carbon fiber laminate.

Horse Construction's carbon fiber laminate have incredible performance and value, including high strength, light weight, corrosion resistance, excellent impact resistance, low cost and high throughput manufacturing.

Horse can produce carbon fiber laminate of different specifications for various structural strengthening projects. Our carbon fiber laminates have competitive prices, excellent impact strength and high performance. Through our ISO 9001 certified manufacturing and quality system and ASTM report, we have a relatively high product quality.

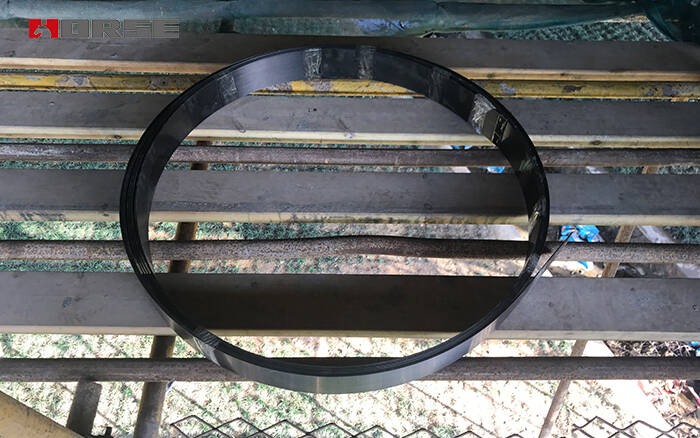

HM Carbon Fiber Laminate Structural Strengthening

Horse Construction HM Carbon Fiber Laminate Specification

HM-1.2T Technical Data Sheet.pdf

HM-1.4T Technical Data Sheet.pdf

Item	HM-1.2T Carbon Fiber Laminate	HM-1.4T Carbon Fiber Laminate	HM-2.0T Carbon Fiber Laminate	HM-3.0T Carbon Fiber Laminate
Thickness(mm)	1.2	1.4	2.0	3.0
Length(m)	100	100	100	100
Width(mm)	50、100	50、100	50、100	50、100
Density(g/cm³)	1.6

Base		Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf Life		Unlimited (no exposure to direct sunlight)
Color		Black carbon fiber laminate
Tensile Strength	Mean Value	3100MPa
	Design Value	2600MPa
Modulus Of Elasticity	Mean Value	165,000MPa
	Design Value	160,000MPa
Elongation at Break		1.7%
Thickness		1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance		＞300° F(＞150℃）
Fiber Volumetric Content		＞68%
Density		0.058 lbs./in³ (1.6g/cm³)

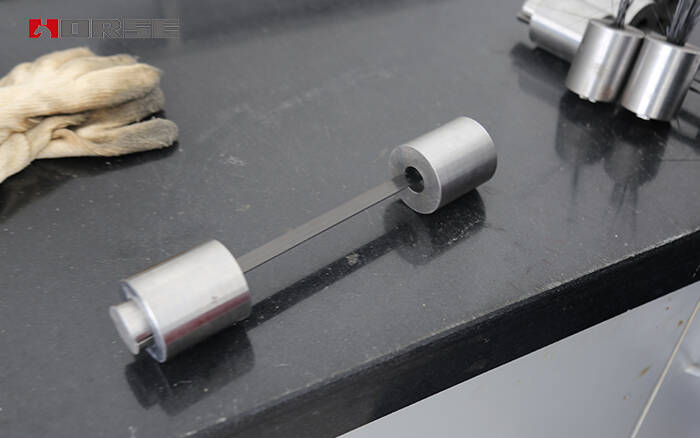

Testing of tensile properties of carbon fiber reinfroced polymer(CFRP) strip.jpg

What Makes Horse Carbon Fiber Laminate Unique?

HM carbon fiber laminate are manufactured under very high quality control, in dust free and environmentally controlled facilities, where temperature and humidity are well controlled. As a result, Horse Construction products easily meet very high standards in both domestic and international markets.

Use of automatic temperature-controlled heating system during manufacturing results in maintaining a uniform pultrusion process, and therefore producing CFRP laminate that have reliable stable pulling strength.

Autonomous large-ton hydraulic traction system fully guarantees the precise control of tension and line speed, ensuring the flatness and straightness of the carbon fiber laminate without any internal residual stress.

Self-developed carbon fiber constant creel makes each carbon fiber yarn smooth before dipping into the epoxy bath, no scratches after the glue application, and the fibers are distributed evenly, to ensure the integral curing of CFRP laminate .
