Carbon Fiber Laminate Thickness for Structural Strengthening

carbon fiber reinforced polymer(CFRP) laminate

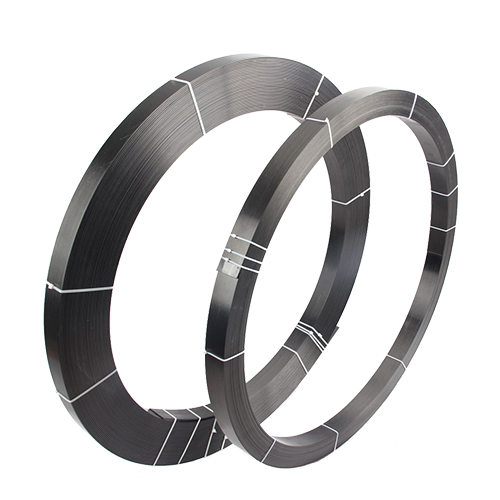

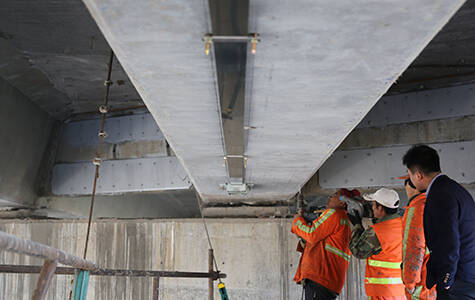

carbon fiber laminate strengthening                    carbon fiber laminate structural strengthening


Carbon fiber reinforced polymer laminate is pre-cured composite laminates, bonding onto the structure as externally strengthening reinforcement using epoxy resin as the adhesive.


Carbon fiber laminate can be used to improve, enhance or repair the performance and resistance of concrete structures. In the right place, the reinforcing plate can be bonded to the concrete element to provide a significant increase in load-bearing capacity and stiffness.


Used for structural reinforcement, the conventional thickness is: 1.2mm, 1.4mm.


Horse Construction provide 4 types of carbon fiber lamiante.


ItemHM-1.2T Carbon Fiber LaminateHM-1.4T Carbon Fiber LaminateHM-2.0T Carbon Fiber LaminateHM-3.0T Carbon Fiber Laminate
Thickness(mm)1.21.42.03.0
Length(m)100100100100
Width(mm)50、10050、10050、10050、100

Density(g/cm3)

1.6


Base
Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf LifeUnlimited (no exposure to direct sunlight)
ColorBlack carbon fiber laminate
Tensile StrengthMean Value3100MPa
Design Value2600MPa
Modulus Of Elasticity

Mean Value

165,000MPa
Design Value 160,000MPa

Elongation at Break

1.7%
Thickness1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance>300°   F(>150℃)
Fiber Volumetric Content>68%
Density0.058 lbs./in 3 (1.6g/cm3)
